Using specialized hardware, the door handle is rotated to drive the door leaf to move horizontally 8mm in and out, achieving a four sided loop type uninterrupted rubber strip sealing and locking, effectively ensuring the comprehensive performance of high air tightness, high water tightness, safety and anti-theft of the product. The separated stainless steel track and top anti deviation design can enhance product durability and stability while reducing usage noise; Install a diamond mesh sliding screen door for safety protection and mosquito prevention.
Product Origin :
Xi'an, ChinaColor :
According to your requirementsShipping Port :
Xi'anLead Time :
15 daysR-130 series High airtight sliding door with sliding seal
Product Features
1. Design of balanced equal cavity stable structure and rectangular cavity structure;
2. Using specialized hardware, the door handle is rotated to drive the door leaf to move horizontally 8mm in and out, achieving uninterrupted sealing and locking of the four sided circular ring with adhesive strips;
Three separate stainless steel tracks and top anti deviation design can enhance product durability and stability while reducing usage noise; Install a diamond mesh sliding screen door for safety protection and mosquito prevention.
4. The surface is made of wear-resistant and corrosion-resistant materials, and innovative printing technology is used. The design is unique, with a wide range of color and style choices, making it more fashionable and beautiful.
5. Suitable for hospitals, food factories, industrial plants, and other places with high requirements for sound insulation, heat insulation, and air tightness.

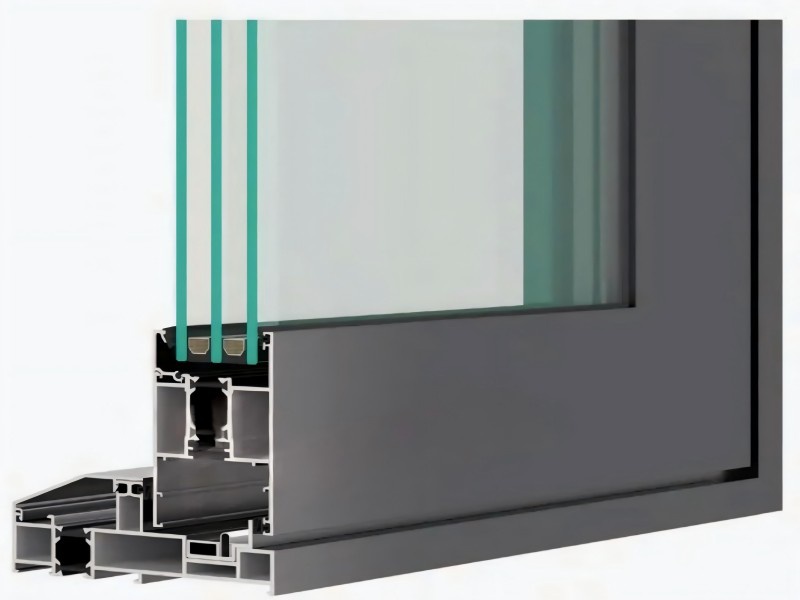

Product Specifications
| Product Name | Aluminum alloy high airtight sliding door with sliding seal |
| Material | Aluminum alloy |
| Surface treatment | spray coating |
| Color | customization |
| Profile wall thickness | 2.0mm |
| Outer frame depth | 130mm |
| Fan structure depth | 58mm |
| Insulation strip width | 18mm |
| Suitable for glass | 24-36mm |
| Enabling function | Push pull activation |
| Application | Hospitals, food factories, industrial plants, and other places with high requirements for sound insulation, heat insulation, and air tightness |
| Aluminum material | sliding door material type |
| Port | Xi'an |
| OEM | available |
| Internal structure of profiles | design of balanced equal cavity stable structure and rectangular cavity structure |
| Features | High sealing, ultra quiet, mosquito proof, anti-theft, wind pressure resistance |
Applicable
Modern residential buildings
Commercial buildings
High end hotels
Public venues
Architectural facade decoration and functional requirements
Aluminum alloy door frames have excellent leveling properties. UV resistance, surface moisture resistance, achieved through electrostatic powder coating technology to achieve oxidation resistance, commercial corrosion resistance, and strong weather resistance. The door is sealed with three layers of ethylene propylene diene monomer and adhesive is injected into the corners, which not only enhances the strength of the corner connection but also improves the airtightness. Water tightness, wind resistance, and sand resistance
This type of door combines practicality and artistry, making it a high-end choice in modern architectural design. If further customized services are needed, architectural drawings or requirement lists can be provided for precise design and production
