Aluminum alloy high-performance casement windows have an exquisite appearance and can be customized with various colors and surface treatments according to personal needs, suitable for different architectural styles. To provide you with high-quality service and reasonable prices.
Product Origin :
Xi'an ChinaColor :
According to your requirementsShipping Port :
Xi'anLead Time :
15 daysCustomized High-Performance Aluminum Alloy Casement Window
Froduct Features
1. Adopting electrostatic powder spraying technology, it has excellent leveling properties, UV resistance, smooth surface, oxidation resistance, corrosion resistance, and strong weather resistance.

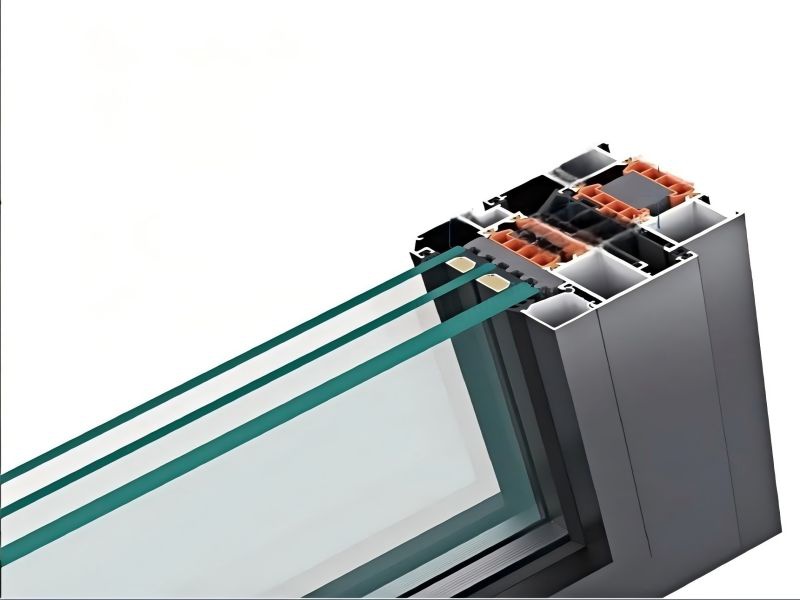

2. The insulation chamber is filled with low thermal conductivity insulation material, and high-quality energy-saving glass is selected. The K-value design of the entire window can be achieved; 1.3-1.1W (㎡. k), equipped with different specifications of insulation strips, can derive different series of products to meet personalized architectural design needs.
3. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, sound insulation, and wind and sand resistance
4. High quality sealing strips and multi-point locking systems are used to ensure air and water tightness, effectively preventing air and water leaks, and suitable for various climatic conditions.
5. Meets the requirements of ecological environment protection, does not release harmful substances, and can be equipped with safety glass to improve impact resistance and ensure safe use.
Product Specifications
|
Product Name |
Aluminum Window |
|
Product code |
R80 aluminum alloy high-performance casement window |
|
Aluminum alloy |
thermal or non thermal fracture |
|
Surface treatment |
electrostatic powder coating |
|
Color |
customization |
|
Parameter |
profile thickness: 1.4/1.8mm Outer frame depth: 80mm Fan structure depth: 90mm Frame visible width: 26/28/30/34/38/46 Insulation strip width: 39/40mm Compatible glass: 39-47mm |
|
High quality |
EPDM rubber sealant |
|
Other components |
diamond mesh/nylon |
|
Enabling function |
internal flat opening/internal reverse/internal flat opening and internal reverse; Internally split; External swing/external suspension |
Applicable
Modern residences
Commercial buildings
High-end hotels
Public venues
Building facade decoration and functional requirements
Aluminum alloy window sashes have excellent leveling, UV resistance, surface moisture resistance, oxidation resistance, corrosion resistance, and strong weather resistance through electrostatic powder spraying technology. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.
This type of window combines practicality with artistry and is a high-end choice in modern architectural design. If further customized services are required, architectural drawings or requirement lists can be provided for precise design and production.
