The safety protection design of the aluminum alloy frame fan flush screen window integrated external window is strengthened, making the product humanized. Independent external opening structure, external suspension opening, meeting indoor ventilation requirements, comfortable and safe, with a slim, neat and beautiful appearance, it is an economical and practical insulation special external window series product. We provide you with high-quality service and reasonable prices.
Product Origin :
Xi'an, ChinaColor :
According to your requirementsShipping Port :
Xi'anLead Time :
15 daysCustomized aluminum alloy frame sash flush screen window integrated external opening window translation
Product Features
1. Using electrostatic powder spraying, it has excellent leveling properties, UV resistance, surface lubrication, oxidation resistance, corrosion resistance, and strong weather resistance. It is suitable for long-term use, with a smooth appearance and high-end texture.

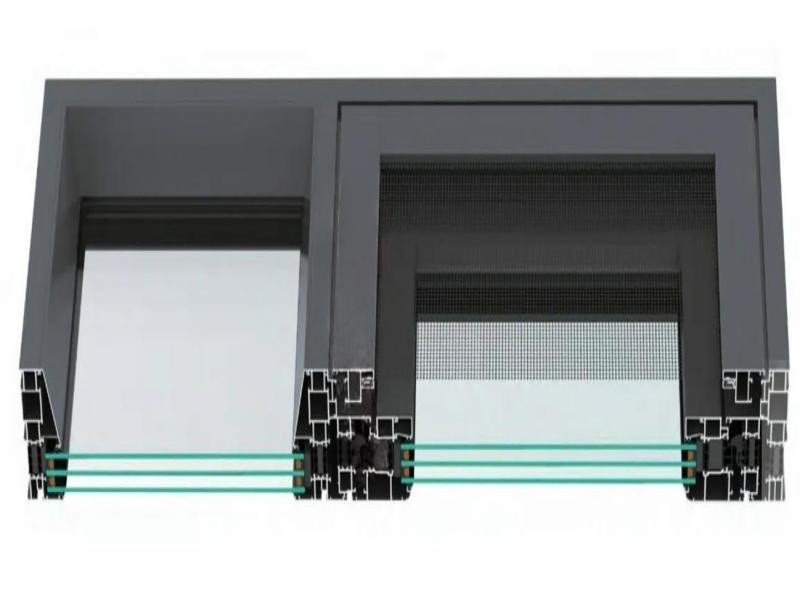

2. The stepped drainage structure that runs through the interior of the aluminum alloy external window and the outdoor drainage design form a waterproof system that integrates drainage and blocking.
3. Adopting integrated bent EPDM rubber to ensure the continuous integrity of the rubber strip and improve the sealing performance of the entire window.
4. The concealed drainage and frame fan flush structure can be used in any combination to meet different decoration styles.
5. Support internal flat opening/internal tilting/internal flat opening and internal tilting; Internally split; Multiple opening modes such as external swing/external suspension.
6. Meets environmental requirements, does not release harmful substances, can be equipped with safety glass, improves impact resistance, and ensures safe use.
Product Specifications
| Product Name | Aluminum window |
| Product Code | R75 frame fan flush screen window integrated external window |
| aluminium alloy | Hot break or non hot break |
| surface treatment | Electrostatic powder spraying |
| colour | customized |
| parameter |
Profile wall thickness: 1.8mm Outer frame depth: 131mm Fan structure depth: 85mm Insulation strip width: 35.3mm Suitable for glass: 33-39mm |
| sealant | High quality EPDM rubber |
| Other components | Diamond Mesh/Nylon |
| Enable function | Internally open/inverted/internally open and inverted; Internally split; External swing/external suspension |
Product details
Applicable
Modern residences
Commercial buildings
High-end hotels
Public venues
Building facade decoration and functional requirements
Aluminum alloy window sashes have excellent leveling, UV resistance, surface moisture resistance, oxidation resistance, corrosion resistance, and strong weather resistance through electrostatic powder spraying technology. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.
This type of window combines practicality with artistry and is a high-end choice in modern architectural design. If further customized services are required, architectural drawings or requirement lists can be provided for precise design and production.
