The aluminum alloy frame fan is flush with the aluminum alloy inner window, and the indoor and outer frame fans are flush with each other, with a simple and atmospheric style,Hidden drainage, smooth drainage, simple and beautiful. To provide you with high-quality service and reasonable prices.
Product Origin :
Xi'an, ChinaColor :
According to your requirementsShipping Port :
Xi'anLead Time :
15 daysCustomized aluminum alloy frame and sash flush aluminum alloy inward-opening window
Product Features
1. Using electrostatic powder spraying, it has excellent leveling properties, UV resistance, surface lubrication, oxidation resistance, corrosion resistance, and strong weather resistance. It is suitable for long-term use, with a smooth appearance and high-end texture.
2. External water treatment, internal stepped drainage structure, and bottom drainage design form a waterproof system that integrates drainage and blocking.

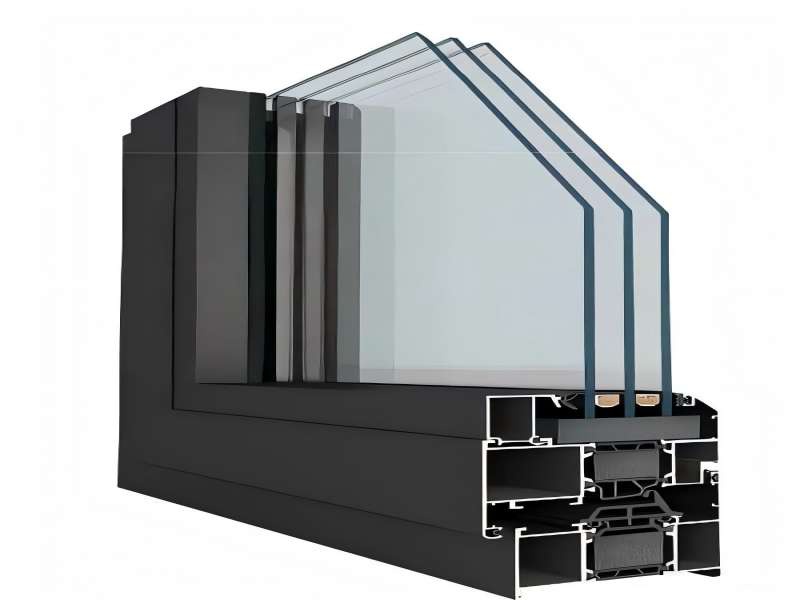

3. Design of balanced equal cavity stable structure and rectangular cavity structure, as well as external water batching, internal stepped drainage structure, and bottom drainage, etc
4. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.
5. Different specifications of insulation strips can be used to achieve a variety of width combinations of frames, frame fans, mullions, and buckle strips, meeting the decoration and design needs of more places. Provide various sizes, colors, and surface treatment options according to customer needs to meet personalized architectural design requirements.
6. Compliant with environmental requirements, does not release harmful substances, can be equipped with safety glass, improves impact resistance, and ensures safe use.
Product Specifications
| Product Name | Aluminum window |
| Product Code | R75 frame fan flush aluminum alloy inner window |
| aluminium alloy | Hot break or non hot break |
| surface treatment | Electrostatic powder spraying |
| colour | customized |
| parameter |
Profile wall thickness: 1.8mm Outer frame depth: 85mm Fan structure depth: 85mm Insulation strip width: 35.3mm Suitable for glass: 33-39mm |
| sealant | High quality EPDM rubber |
| Other components | Diamond Mesh/Nylon |
| Enable function | Internally open/inverted/internally open and inverted |

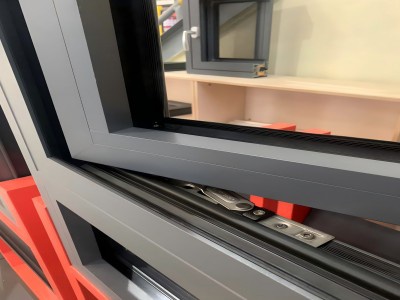

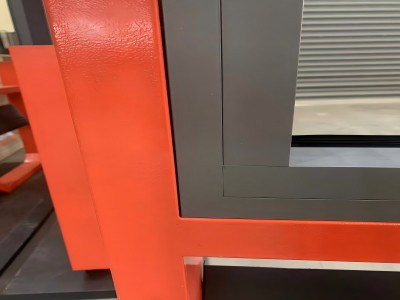

Product details
Applicable
Modern residences
Commercial buildings
High-end hotels
Public venues
Building facade decoration and functional requirements
Aluminum alloy window sashes have excellent leveling, UV resistance, surface moisture resistance, oxidation resistance, corrosion resistance, and strong weather resistance through electrostatic powder spraying technology. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.This type of window combines practicality with artistry and is a high-end choice in modern architectural design. If further customized services are required, architectural drawings or requirement lists can be provided for precise design and production.
