Flat double internal concealed drainage+micro ventilation window screen integrated, screen frame adopts a hidden installation structure, indoor and outdoor ping design, integrating simplicity, beauty, and safety protection. To provide you with high-quality service and reasonable prices.
Product Origin :
Xi'an, ChinaColor :
According to your requirementsShipping Port :
Xi'anLead Time :
15 daysCustomized aluminum alloy flat double internal concealed drainage+micro ventilation window
Product Features
1. Using electrostatic powder spraying, it has excellent leveling properties, UV resistance, surface lubrication, oxidation resistance, corrosion resistance, and strong weather resistance. It is suitable for long-term use, with a smooth appearance and high-end texture.

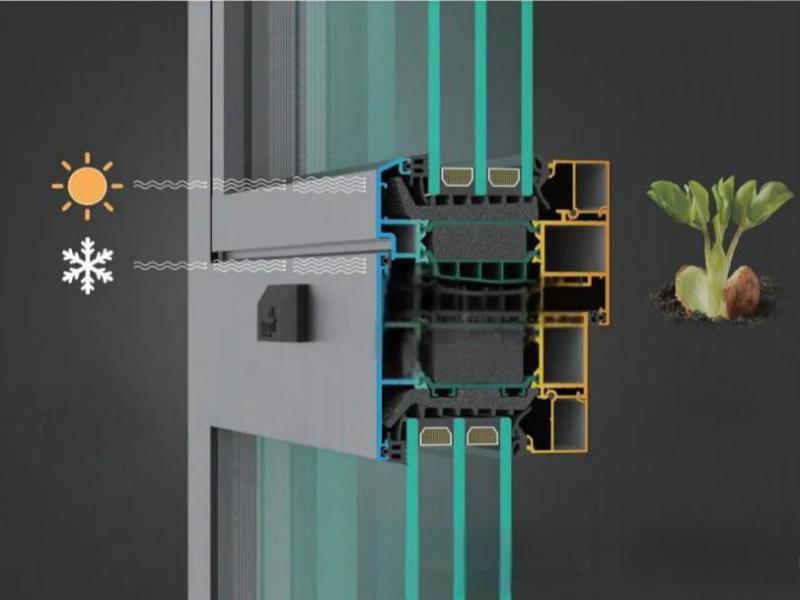

2. The stepped drainage structure that runs through the interior and the outdoor drainage design form a waterproof system that integrates drainage and blocking.

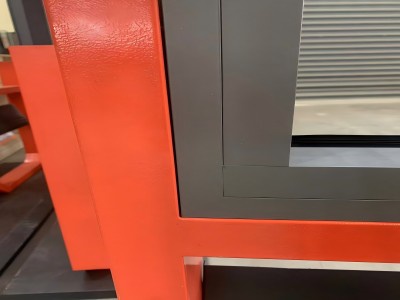

3. Special corner sealing plugs are used at the connection of the mullion to ensure corner sealing.
4. The concealed drainage and frame fan flush structure can be used in any combination to meet different decoration styles.
5. Provide various sizes, colors, and surface treatment options according to customer needs to meet personalized architectural design requirements.
6. Compliant with environmental requirements, does not release harmful substances, can be equipped with safety glass, improves impact resistance, and ensures safe use.
Product Specifications
| Product Name | Aluminum window |
| Product Code | R91/95 flush double internal concealed drainage+micro ventilation window |
| aluminium alloy | Hot break or non hot break |
| surface treatment | Electrostatic powder spraying |
| colour | customized |
| parameter |

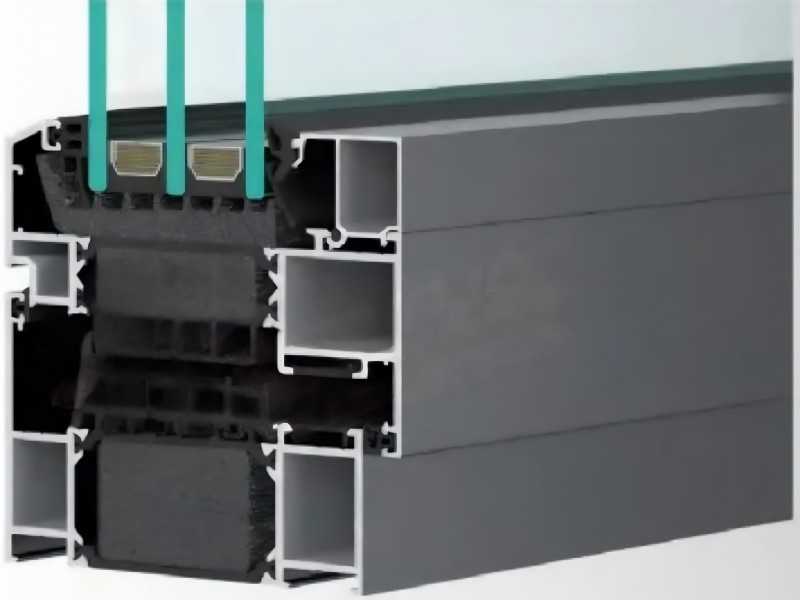

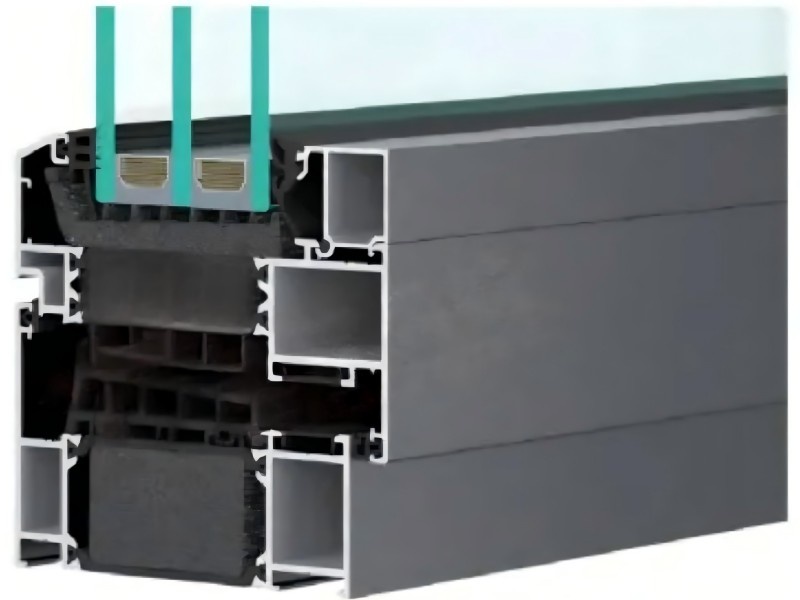

Profile thickness: 1.8mm Outer frame depth: 91/95mm Fan structure depth: 101/105mm Frame visible width: 38.6mm Insulation strip width: 54mm Compatible glass: 39-47mm
|
| sealant | High quality EPDM rubber |
| Other components | Diamond Mesh/Nylon |

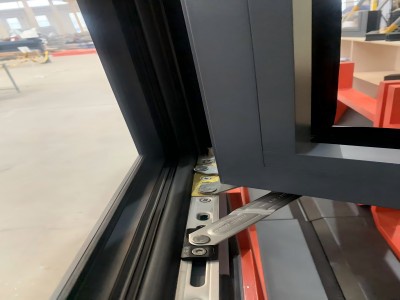

| Enable function | Internally open/inverted/internally open and inverted |
Product details
Applicable
Modern residences
Commercial buildings
High-end hotels
Public venues
Building facade decoration and functional requirements
Aluminum alloy window sashes have excellent leveling, UV resistance, surface moisture resistance, oxidation resistance, corrosion resistance, and strong weather resistance through electrostatic powder spraying technology. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.
This type of window combines practicality with artistry and is a high-end choice in modern architectural design. If further customized services are required, architectural drawings or requirement lists can be provided for precise design and production.
