Aluminum alloy casement windows do not occupy indoor space when opened, with a balanced and stable structure and an internal stepped drainage structure design. To provide you with high-quality service and reasonable prices.
Product Origin :
Xi'an, ChinaColor :
According to your requirementsShipping Port :
Xi'anLead Time :
15 daysCustom Aluminum Energy Saving casement Window
Product Features
1. Adopting electrostatic powder spraying technology, it has excellent leveling, UV resistance, surface moisture resistance, oxidation resistance, corrosion resistance, strong weather resistance, suitable for long-term use, smooth appearance, and high-end texture.
2. The casement window design style does not occupy space, providing overall lighting and illumination effects for the window, and the window is simple and atmospheric. It can be combined with insulated glass or insulation systems to achieve higher energy-saving effects.
3. Provide various sizes, colors, and surface treatment options according to customer needs to meet the needs of different customers.
4. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.
5. Supports multiple opening and closing methods such as fixed windows, sliding windows, and external windows, and can be combined with intelligent control systems to achieve automatic switching or remote control.
6. Compliant with environmental requirements, does not release harmful substances, can be equipped with safety glass, improves impact resistance, and ensures safe use.

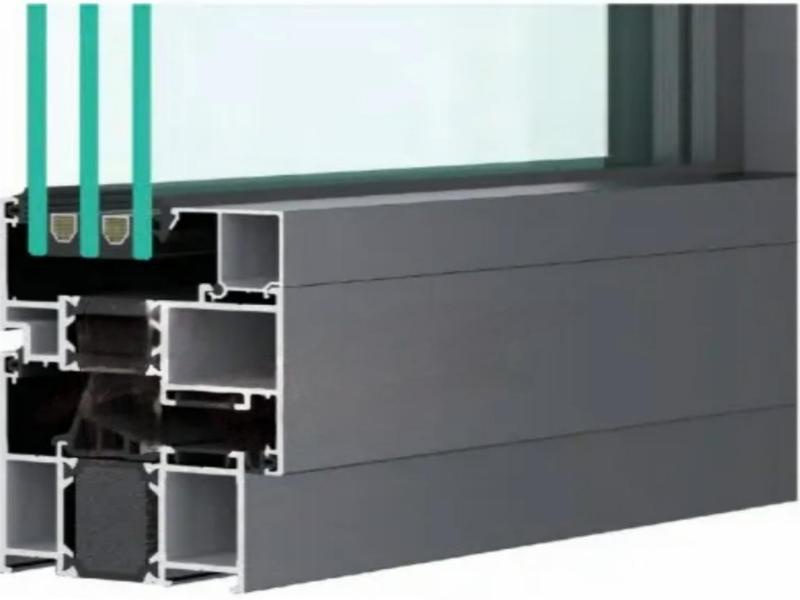

Product Specifications
| Product Name | Aluminum window |
| Product Code | R65 energy-saving casement window |
| aluminium alloy | Hot break or non hot break |
| surface treatment | Electrostatic powder spraying |
| colour | customized |
| parameter |
Profile thickness: 1.4/1.8mm Outer frame depth: 65mm Fan structure depth: 75mm Frame visible width: 26/28/30/34/38/46 Insulation clause: 24/25.3mm Suitable for glass: 22-39mm |
| sealant | High quality EPDM rubber |
| Other components | Diamond Mesh/Nylon |
| Enable function | Internally open/inverted/internally open and inverted; Internally split; External flat opening/external suspension; External split |

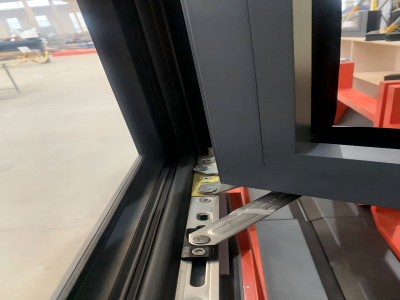

Product details
Applicable
Modern residences
Commercial buildings
High-end hotels
Public venues
Building facade decoration and functional requirements
Aluminum alloy window sashes have excellent leveling, UV resistance, surface moisture resistance, oxidation resistance, corrosion resistance, and strong weather resistance through electrostatic powder spraying technology. The window is sealed with three layers of ethylene propylene diene monomer and injected with adhesive at the corners, which not only enhances the strength of the corner connection, but also improves the air tightness, water tightness, and wind and sand resistance.
This type of window combines practicality with artistry and is a high-end choice in modern architectural design. If further customized services are required, architectural drawings or requirement lists can be provided for precise design and production.
